Soldier knives: A build-along thread

Post by Storm Crow » Tue Feb 16, 2010 1:29 am

I was approached by a soldier stationed in Alaska who is about to be stationed in Afghanistan atthe end of the month to make a pair of knives: one for him and one for his brother who is already stationed in the Rockbox. With his permission, I am posting pictures of the process along the way. I mildly exploded at someone on Zombie Squad who commented that there is absolutely no reason to spend more than $100 on a knife. Perhaps this will explain why I had that reaction.

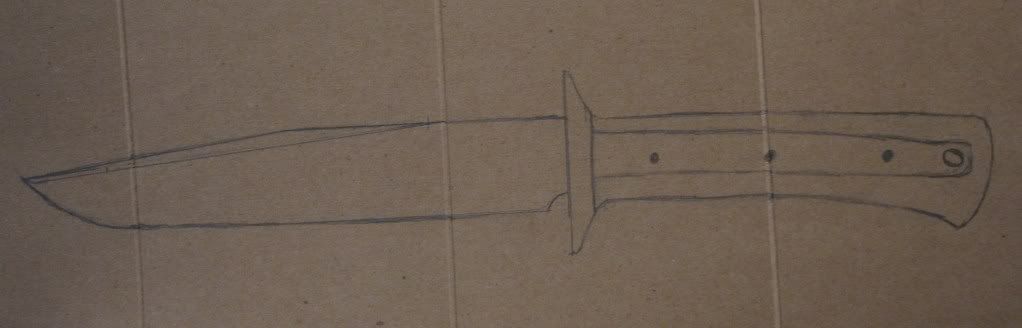

This is the design that we settled on. It is a 7" blade, steel double guard, with a hybrid full length stick tang/slab handle using paper Micarta, stainless steel Corby rivets, and a lanyard hole. The sheath will be Kydex.

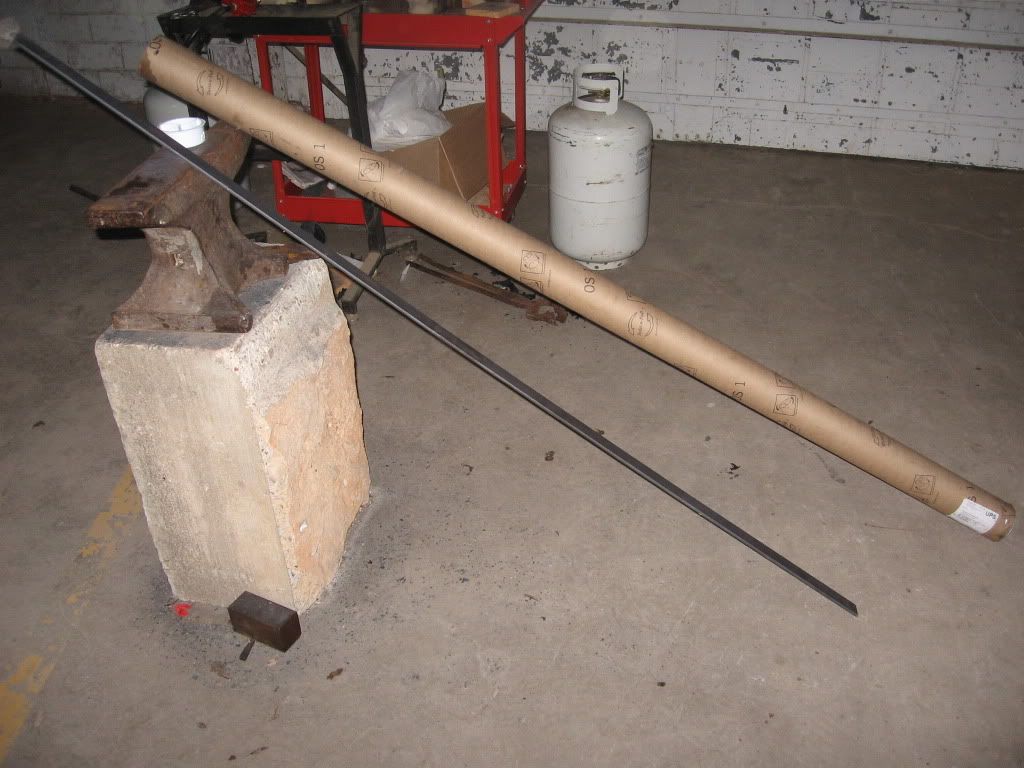

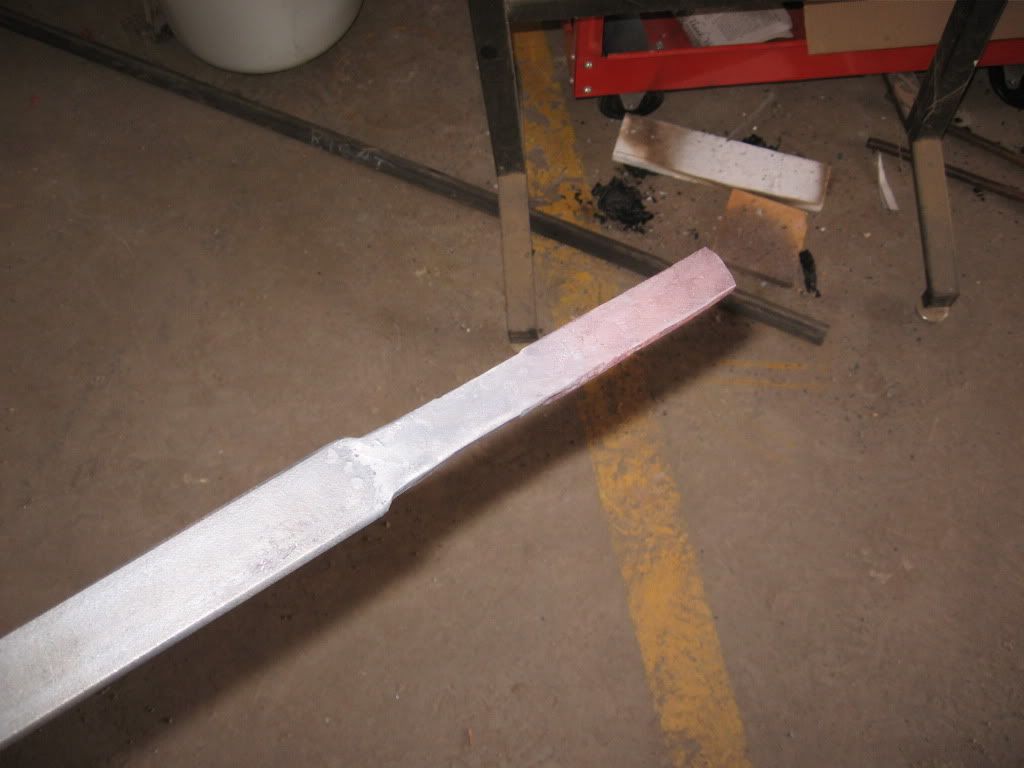

This is the steel just removed from the shipping tube. 5160 chromium alloy steel, 1.5" x .25" x 6'. Since this is approximately as wide and thick as I want the final knife to be, if I just started forging the blade, I'd end up much bigger. So I forge it narrower and then forge the blade.

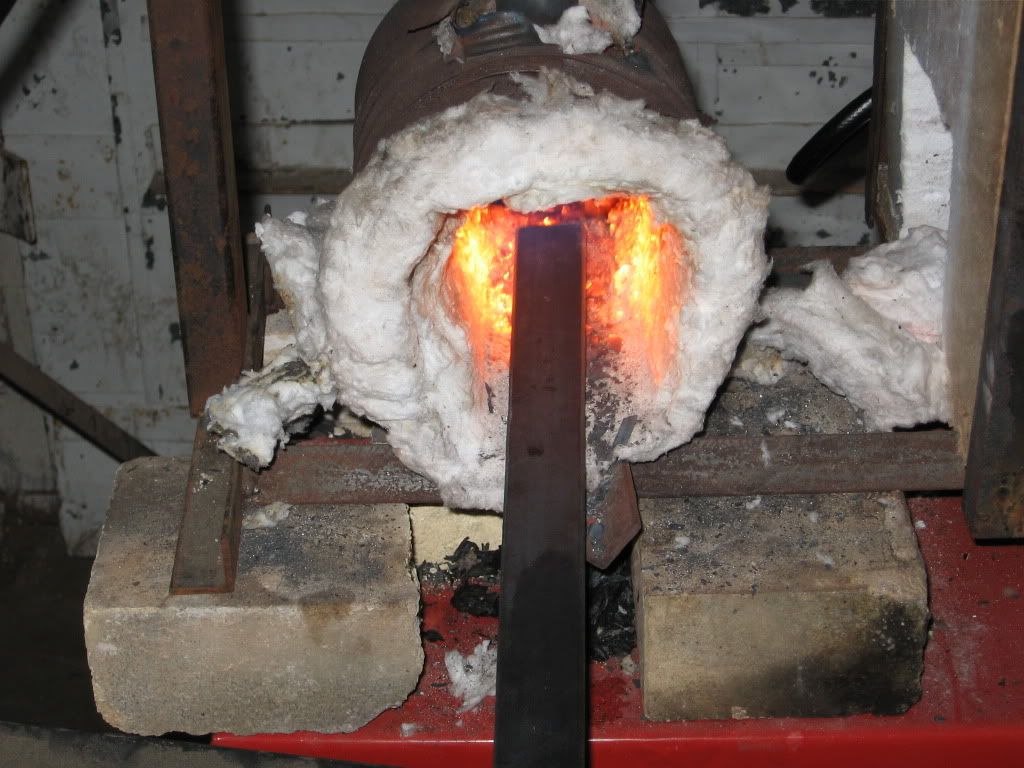

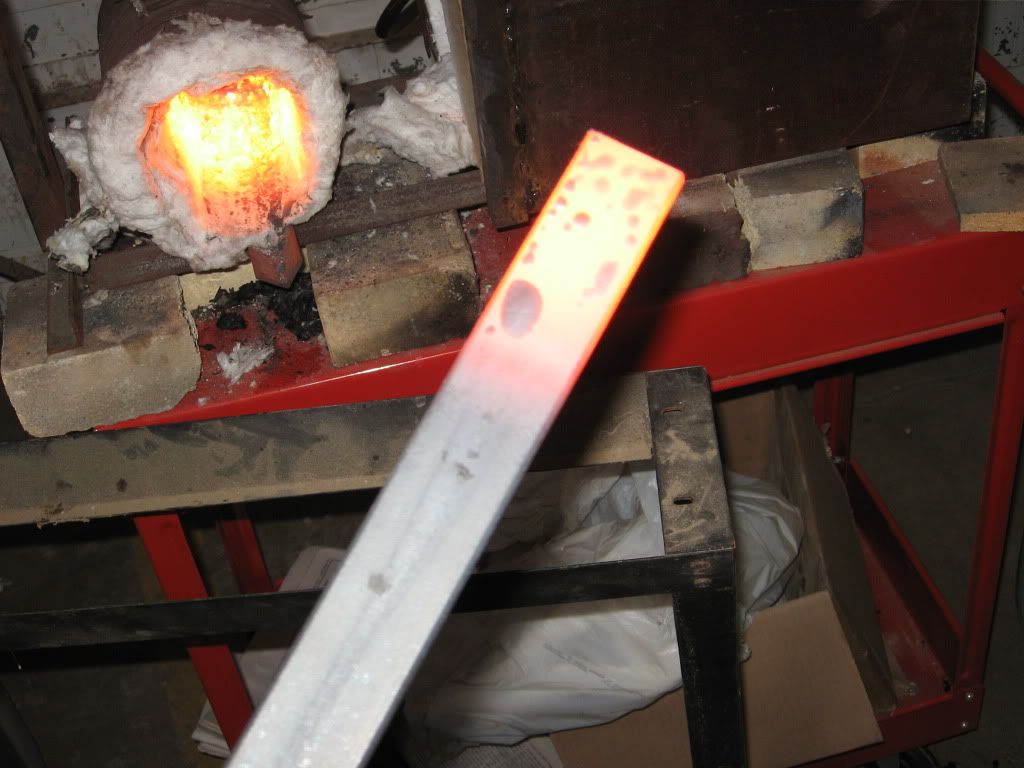

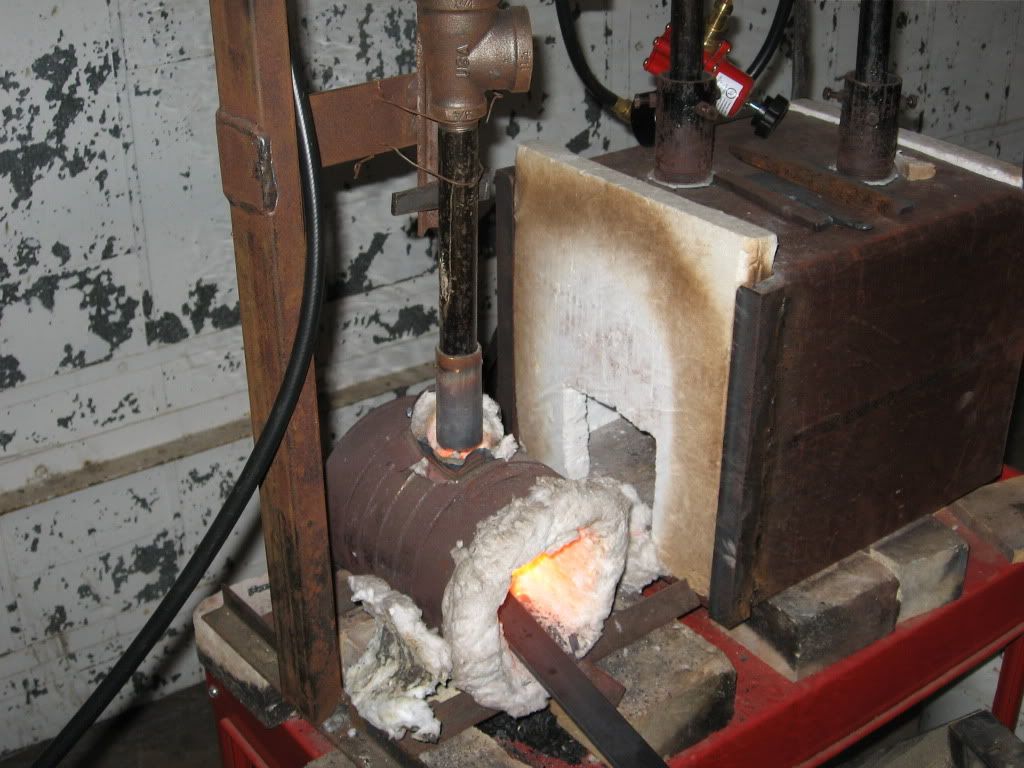

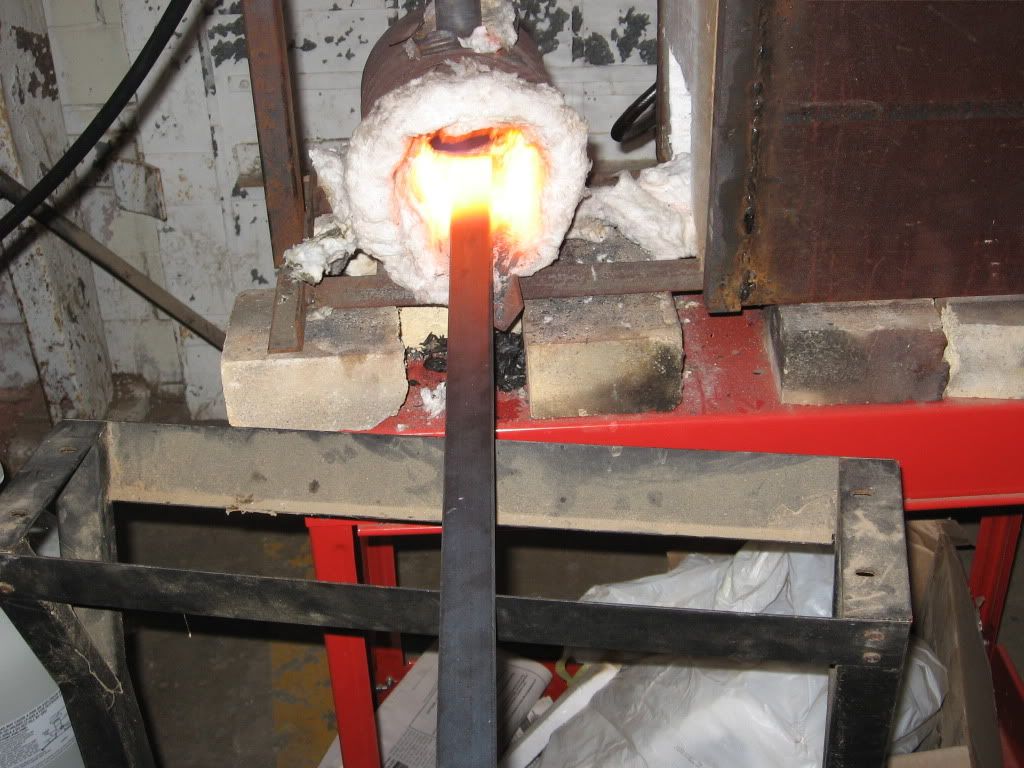

I cut off a 2 foot section of the steel and heat it in my little coffee can forge. This is a variation of this: http://www.zoellerforge.com/coffee.html" onclick="window.open(this.href);return false; It uses high-temp ceramic wool insulation. The metal of the coffee can stays cool enough that you can touch the outside comfortably for several seconds. With the relatively small chamber and single burner, it's easy on the propane.

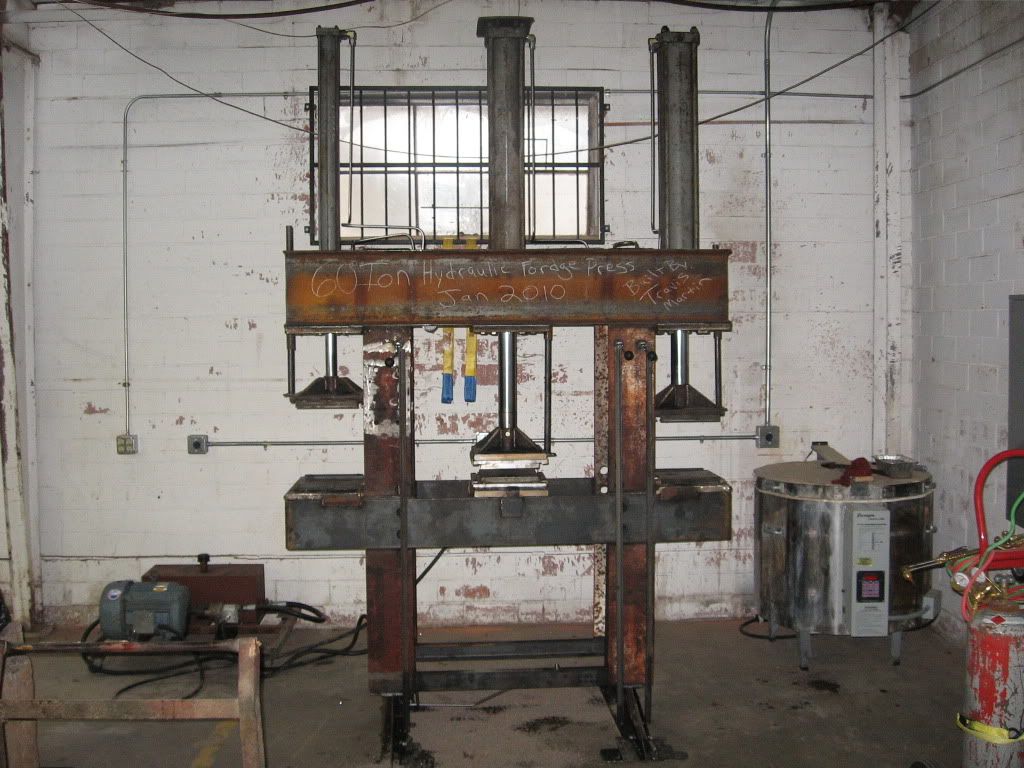

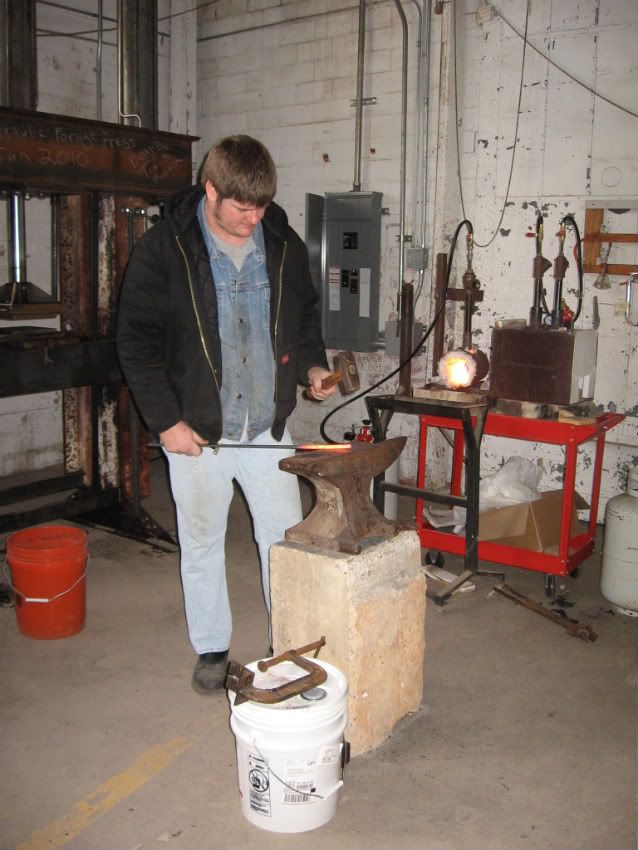

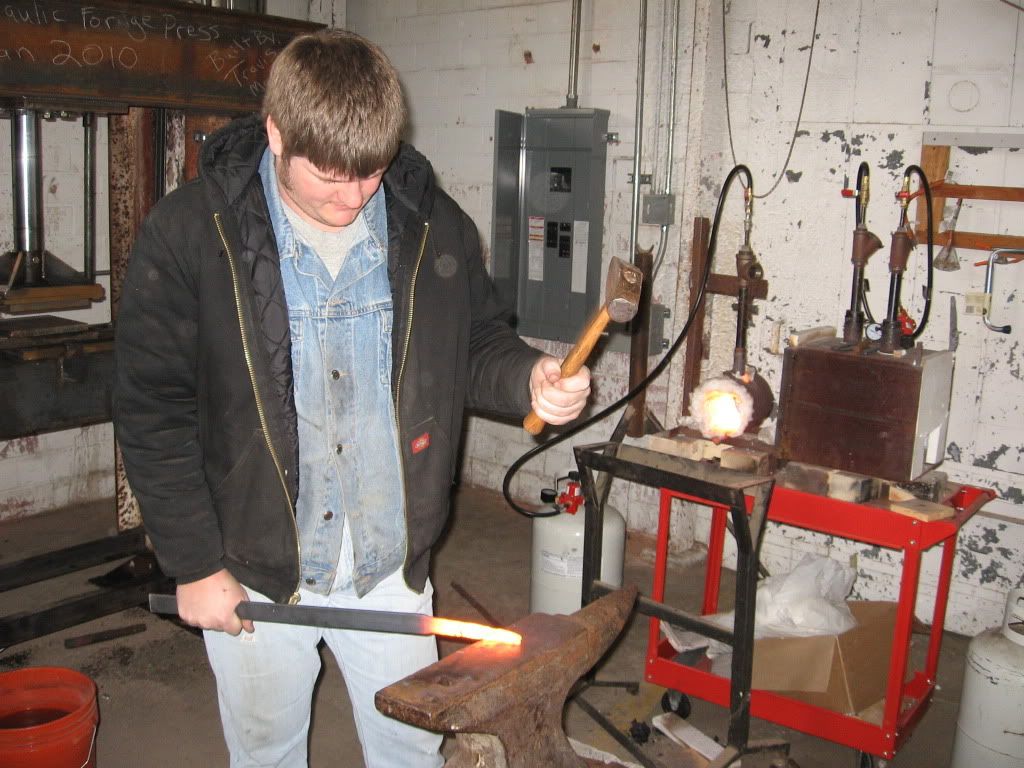

I use my newly-completed custom three-station hydraulic forging press (built to my specifications by my cousin Travis Martin) to speed things along, drawing the steel out longer and narrower while keeping it forged down to about the same thickness it started out. It says 60 ton, but it's actually 42.4 tons. This has been a great machine and I haven't yet tapped half of its potential!

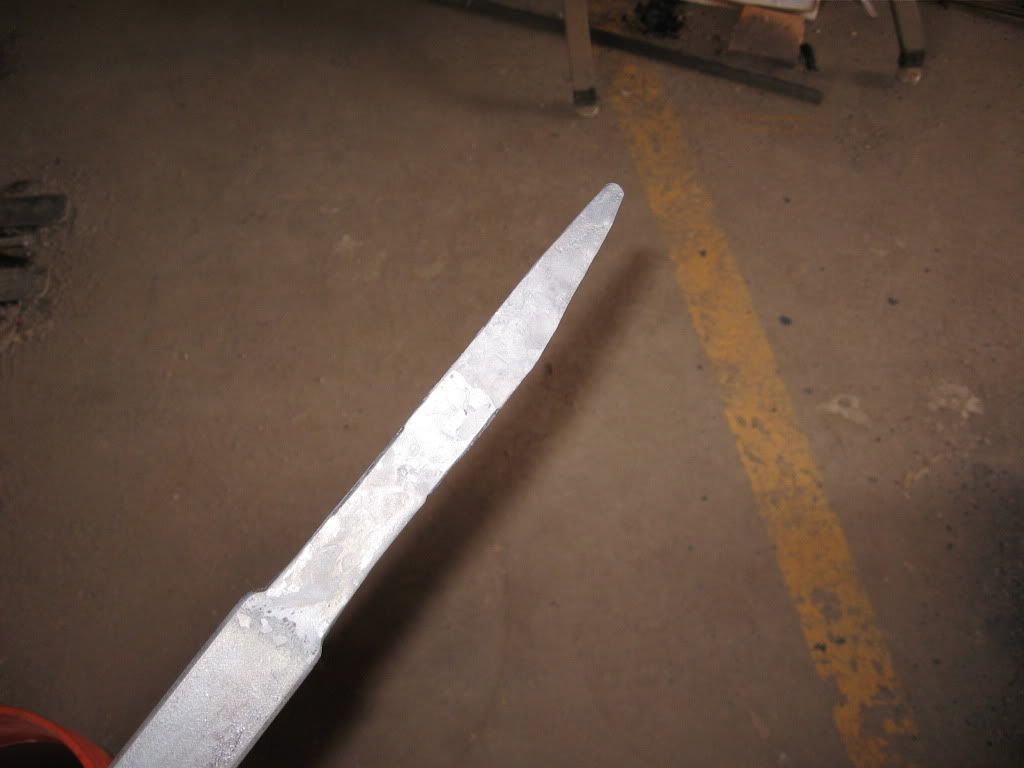

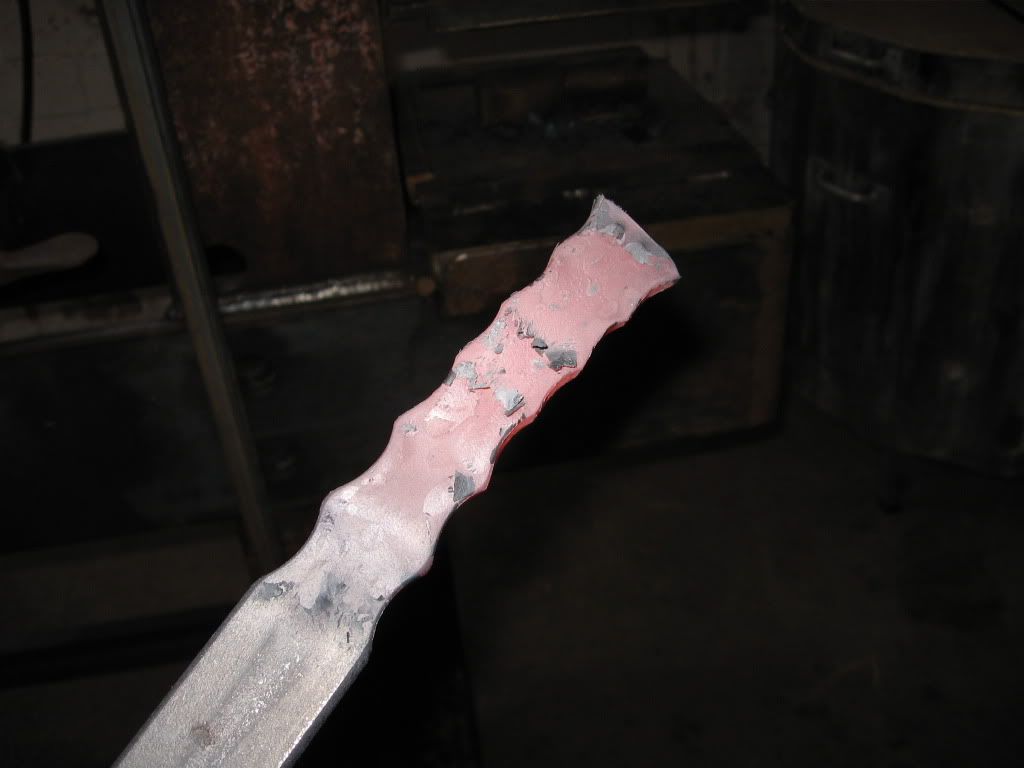

I finish out my pre-form by hand.

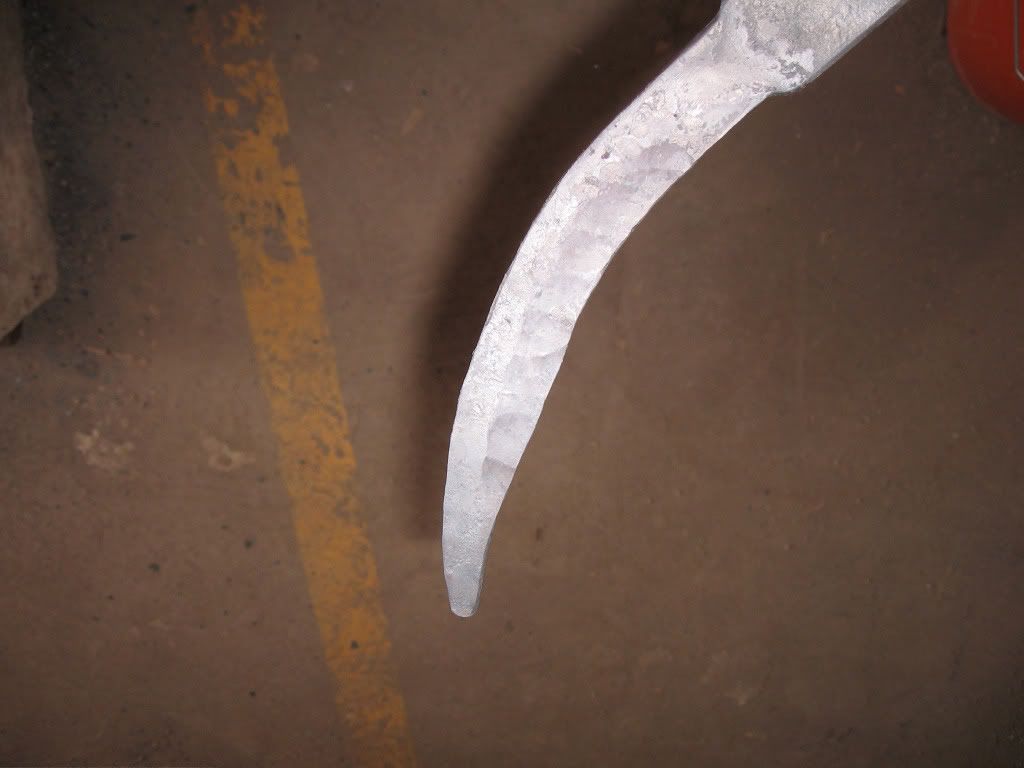

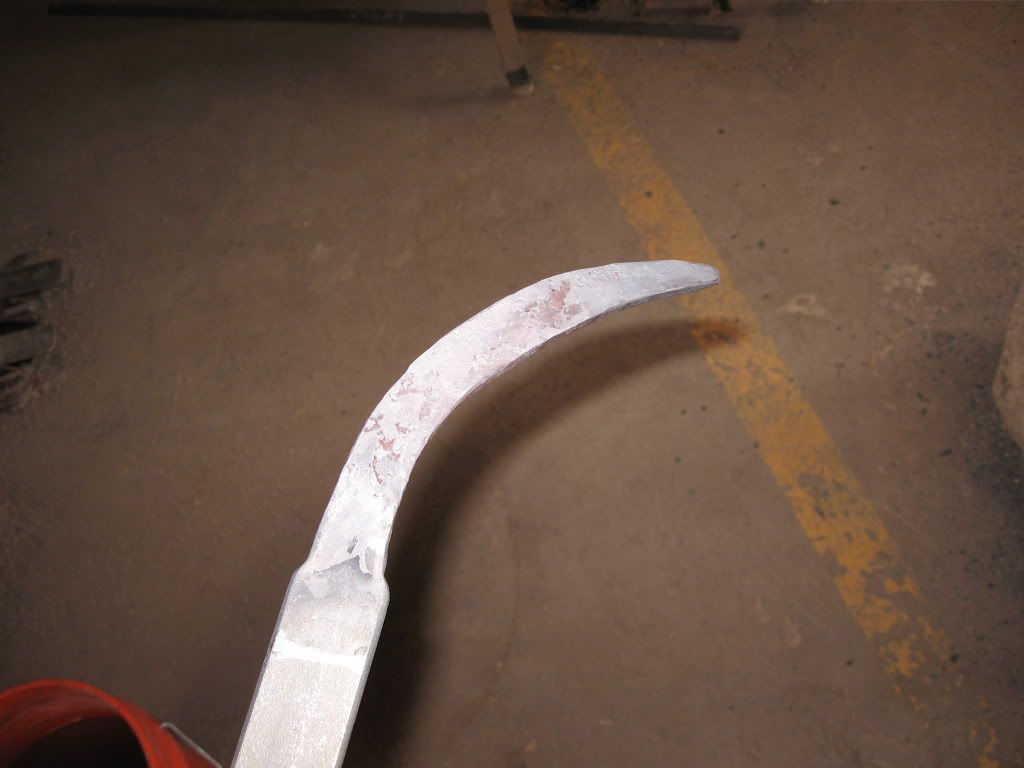

I counter bend the blade. As I forge the bevel in, it stretches that side of the steel, lengthening it. This straghtens the blade back up. I forge down the edge, leaving a ridgeline where my hammer face ends. Then I hammer down the ridgeline, widening the blade and straightening it more. After a number of passes, I have the general shape of the blade finished. I tweak it to make sure it has a straight edge, then cut it off and draw the other end out into the tang. The press and hand hammering come into play here.

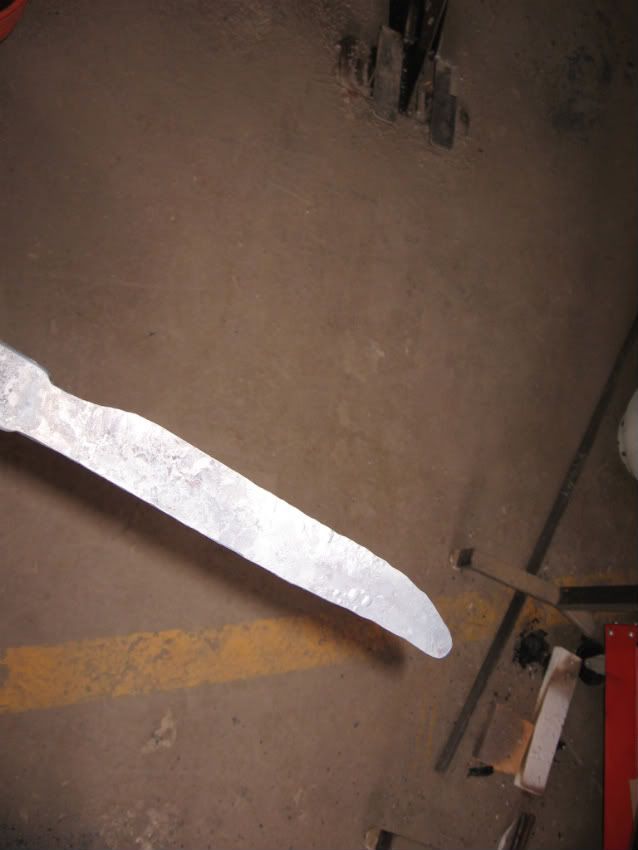

After heating the blade once again and letting the knife cool to refine the grain (normalizing), I grind the basic profile. For most of the blade, there isn't much to remove, but the tip needed a fair amount removed. I made sure to leave myself plenty of wiggle room with my forging at the tip. After that, I stamp my touchmark into the blade, straighten the spine and then the cutting edge (something that can sometimes be maddeningly frustrating. It wasn't too bad this time), tweak my angle of tang to the blade, normailze the blade again, and do a bit more clean up grinding.


Then I go through the whole process again for the second knife. Because I needed the two knives to be identical in profile, I ended up using the first as template to mark on the second with a Sharpie the excess to grind off. After getting close to the lines, I clamped the two blades together with a pair of ViseGrips and completed the profile grinding as a single unit.

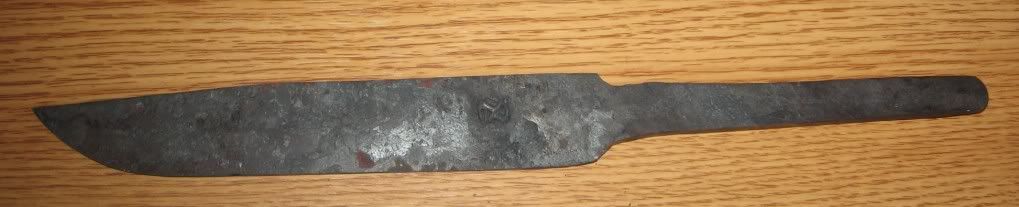

The angles of the tangs are too high. I'll work on them tomorrow and get the tangs uniform.

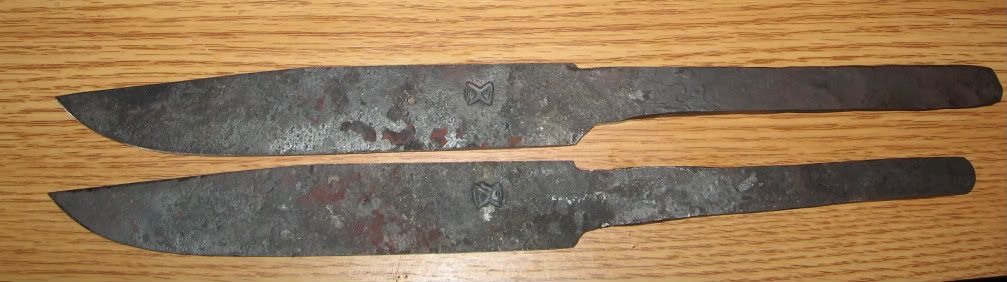

Here's how they stand at the moment.


More as they progress.
