RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by JoergS » Mon Apr 08, 2013 7:44 am

Many of you have probably hear of the PSE TAC15 crossbow that fits on an AR-15 or M16 lower receiver.

http://www.tac15.com/" onclick="window.open(this.href);return false;

I think the idea is compelling! And since the lower receiver is an unregulated gun part here in Germany, it is not illegal to buy one and modify the heck out of it. I could even buy a deactivated "deko" M16 with a fully functional full auto lower receiver.

http://www.egun.de/market/item.php?id=4165675" onclick="window.open(this.href);return false;

http://www.egun.de/market/item.php?id=4329466" onclick="window.open(this.href);return false;

Now the idea would be to come up with a very slick looking rubber crossbow concept, with scope of course. I am thinking about a turnable "muzzle" that allows you to choose between a steel/lead ball (or even a stone) and a full size arrow, like the TAC15. Since rubber doesn't require the huge draw force of a crossbow, I would go for a stirrup instead of a winch. I would use a sled that allows you to preload the weapon, so if you want to shoot you just have to rack the slide back using two levers and you can shoot.

This time I wouldn't use wood, but machined aluminum.

What do you guys think?
My YouTube channel: http://www.youtube.com/user/JoergSprave" onclick="window.open(this.href);return false;

My blog: http://www.slingshotchannel.blogspot.de/" onclick="window.open(this.href);return false;

My forum: http://www.theslingshotforum.com" onclick="window.open(this.href);return false;

User avatar
majorhavoc
ZS Donor
ZS Donor
Posts: 7346
Joined: Wed May 12, 2010 10:06 am
Favorite Zombie Movies: 28 Days Later, ZombieLand, Dawn of the Dead
Location: Maine

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by majorhavoc » Mon Apr 08, 2013 8:02 am

What do we think, Joerg? Com'on! This is Zombie Squad you're talking about! You're only going to get one answer from us:


User avatar
frogdude
* *
Posts: 219
Joined: Wed Mar 31, 2010 4:05 am
Favorite Zombie Movies: Night & Dawn (obviously)
28 Days later
Shawn of the Dead
Braindead (aka DeadAlive)
Location: Maidstone, Kent, UK
Contact:

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by frogdude » Mon Apr 08, 2013 12:15 pm

DO IT! DO IT! DO IT!
Lionel wrote:
Paquita wrote: Your mother ate my dog!
Not all of it....
http://www.electricfrog.webs.com

JoergS
* * * * *
Posts: 1460
Joined: Sun Aug 16, 2009 11:15 am

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by JoergS » Tue Apr 09, 2013 4:20 am

Have bought the M16, original model with Full Auto switch. 1200 Euros.

Once it arrives, I will start to design the kit.

- Must look absolutely cool
- Must be able to shoot arrows AND steel balls
- Must be preloadable, so cocking is quick and easy
- Must be dead accurate
- Must be able to shoot armor piercing arrows
- Must shoot steel balls hard enough to break a coconut at 15 meters
- Must be totally silent
- Must be exchangeable against the conventional upper within seconds
- Must include a "magazine" that fits into the lower receiver, containing steel balls and spare rubber bands
- Must not cost more than 35 dollars in parts (plus assembly)

Quite a challenge, right?
My YouTube channel: http://www.youtube.com/user/JoergSprave" onclick="window.open(this.href);return false;

My blog: http://www.slingshotchannel.blogspot.de/" onclick="window.open(this.href);return false;

My forum: http://www.theslingshotforum.com" onclick="window.open(this.href);return false;

User avatar
majorhavoc
ZS Donor
ZS Donor
Posts: 7346
Joined: Wed May 12, 2010 10:06 am
Favorite Zombie Movies: 28 Days Later, ZombieLand, Dawn of the Dead
Location: Maine

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by majorhavoc » Tue Apr 09, 2013 7:47 am

JoergS wrote: I will start to design the kit.

- Must ....

[great big upper of whistling death]

....

- Must not cost more than 35 dollars in parts (plus assembly)

Quite a challenge, right?
Impossible. Absolutely impossible. There. I've said it. Now please prove me wrong.

JoergS
* * * * *
Posts: 1460
Joined: Sun Aug 16, 2009 11:15 am

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by JoergS » Tue Apr 09, 2013 8:12 am

Well... aluminum and steel just isn't very expensive. And a slingshot crossbow isn't a very complex weapon, even if it has two "barrels". Keep in mind the stock, trigger and so on is already in place (M16).
My YouTube channel: http://www.youtube.com/user/JoergSprave" onclick="window.open(this.href);return false;

My blog: http://www.slingshotchannel.blogspot.de/" onclick="window.open(this.href);return false;

My forum: http://www.theslingshotforum.com" onclick="window.open(this.href);return false;

User avatar
majorhavoc
ZS Donor
ZS Donor
Posts: 7346
Joined: Wed May 12, 2010 10:06 am
Favorite Zombie Movies: 28 Days Later, ZombieLand, Dawn of the Dead
Location: Maine

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by majorhavoc » Tue Apr 09, 2013 10:31 am

Don't get me wrong: I want you to disprove me. :awesome:

It's the capabilities you listed that are the tall order. I cannot wait for whatever you come up with. :clap:

User avatar
Spd164
* * *
Posts: 440
Joined: Thu Dec 15, 2011 1:01 pm
Location: Pittsburgh, PA

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by Spd164 » Tue Apr 09, 2013 10:59 am

Oh boy do I want to see this. I reeeeeeally want to see this. So basically, tagged to observe the genius at work :)

User avatar
azrael99
* * * * *
Posts: 2371
Joined: Thu Nov 03, 2011 7:55 pm
Favorite Zombie Movies: night of the living dead, 28 days later, Zombieland, World war Z (when it gonna be out)
Location: Saguenay,Quebec Canada

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by azrael99 » Tue Apr 09, 2013 11:29 am

:clap: :clap: DO IT :clap: :clap:
"We stopped to look for monster under the bed , the day we realized that they were inside us"

User avatar
ForgeCorvus
ZS Member
ZS Member
Posts: 1520
Joined: Wed Sep 23, 2009 3:59 pm
Favorite Zombie Movies: Quite liked 'Dead Set'
'28 Days Later'
and think that 'Shaun of the Dead' is a great poke at the whole Z-flick thing
Location: Darkest Norfolk

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by ForgeCorvus » Tue Apr 09, 2013 12:43 pm

Popcorn
I'm English, our Government doesn't trust us to have real guns........or decent pocket knives for that matter
Good job theres no such thing as a Trebuchet licence :D


Winner, PMBoB
LowKey wrote:INCH bags are to lifeboats what BOBs are to life vests.

User avatar
MacWa77ace
* * * * *
Posts: 2107
Joined: Fri Apr 20, 2012 10:39 am
Favorite Zombie Movies: The Omega Man, I Am Legend, Dawn of the Dead v1974.
Location: South East Florida
Contact:

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by MacWa77ace » Tue Apr 09, 2013 1:57 pm

courtesy of BF3
Lifetime gamer watch at:
MacWa77ace YouTube Channel



User avatar
Krustofski
* * * * *
Posts: 1494
Joined: Mon Oct 05, 2009 2:40 pm
Favorite Zombie Movies: Night of the Living Dead (1968)
Location: The Teutonic Woodlands

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by Krustofski » Tue Apr 09, 2013 2:07 pm

I'm so much in favor of this, you have no idea. :ohdear:

Also, did you spend € 2000 on a deactivated M16 because it's a cool collectible? I totally get this.

If it was just for the RUB-15, semi auto Oberland Arms lowers go for under € 300, if you know where to look. Just saying.


This will be awesome.
Off the internet until further notice.

JoergS
* * * * *
Posts: 1460
Joined: Sun Aug 16, 2009 11:15 am

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by JoergS » Tue Apr 09, 2013 2:12 pm

I spent 1190 €, not 2000. I think I can easily sell it for about that price later on, more if I add the slingshot.

I thought about getting a lower as a separate item, but

a) I want to show how to change back and forth between firearm and slingshot
b) most lower receivers come totally naked and you need to get all of the small parts from somewhere else
c) the YouTube income will easily cover the price of the M16
d) it is kind of cool to own one, even in deactivated condition.
My YouTube channel: http://www.youtube.com/user/JoergSprave" onclick="window.open(this.href);return false;

My blog: http://www.slingshotchannel.blogspot.de/" onclick="window.open(this.href);return false;

My forum: http://www.theslingshotforum.com" onclick="window.open(this.href);return false;

User avatar
Israel
ZS Lifetime Member
ZS Lifetime Member
Posts: 382
Joined: Tue Sep 07, 2010 9:13 pm
Favorite Zombie Movies: Dawn of the Dead, Resident Evil, 28 Days Later, Shaun of the Dead, Zombieland, Special Dead, Cockneys vs. Zombies
Location: EADO Houston

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by Israel » Tue Apr 09, 2013 2:14 pm

I already want 2. Even before the prototype.
Griff wrote:Their are two kinds of people in the world; Those who have a plan prepared for when the zombies take over the Earth, and those who don't. We call those people "Dinner"
I got eaten alive by chiggers at Z-Con 2011

LifeStraw Review
Chinese Wonder Shovel Review

User avatar
Krustofski
* * * * *
Posts: 1494
Joined: Mon Oct 05, 2009 2:40 pm
Favorite Zombie Movies: Night of the Living Dead (1968)
Location: The Teutonic Woodlands

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by Krustofski » Tue Apr 09, 2013 2:17 pm

JoergS wrote:I spent 1190 €, not 2000. I think I can easily sell it for about that price later on, more if I add the slingshot.
My bad. Not wearing my glasses.
Off the internet until further notice.

JoergS
* * * * *
Posts: 1460
Joined: Sun Aug 16, 2009 11:15 am

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by JoergS » Fri Apr 26, 2013 3:35 am

Getting closer. Weapon arrived, and I have been doing some thinking.

I don't want to use the winch thing the TAC15 employs - too slow. I will add a stirrup and pull levers so you don't have to pull on the string itself. I hate the cocking aids you have to use on many modern crossbows - when you loose them, the weapon is useless, and also it takes forever to put them in place.

In order to reach my 30 dollars bill of materials goal, I will have to employ both wood and metal. Wood can be replaced by 3D printable plastic later on.

I decided to go for heavy aluminum arrows instead of lightweight CF ones - rubber based crossbows aren't as fast as compound types, but can handle heavy projectiles really well. I like momentum as it can cause much more damage, therefore aluminum it is.

Will start working on the real thing this weekend.
My YouTube channel: http://www.youtube.com/user/JoergSprave" onclick="window.open(this.href);return false;

My blog: http://www.slingshotchannel.blogspot.de/" onclick="window.open(this.href);return false;

My forum: http://www.theslingshotforum.com" onclick="window.open(this.href);return false;

User avatar
lowjohn19
* * * *
Posts: 873
Joined: Sun Feb 01, 2009 12:04 am
Contact:

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by lowjohn19 » Fri Apr 26, 2013 3:39 am

Can't wait!

JoergS
* * * * *
Posts: 1460
Joined: Sun Aug 16, 2009 11:15 am

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by JoergS » Sat Apr 27, 2013 3:47 pm

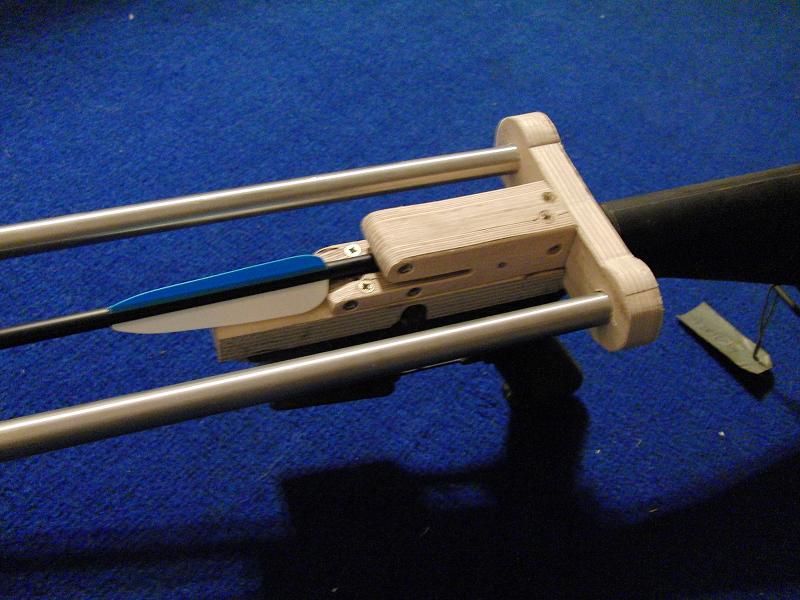

Here are the first pcture of the build...

Will do a pure arrow shooter first, just to learn what works and what doesn't.

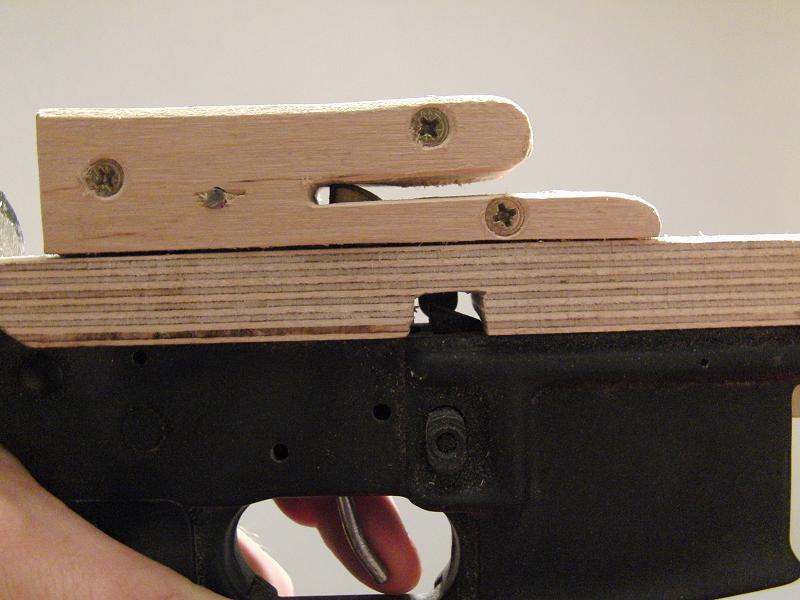

Removed the upper receiver and also the trigger/hammer assembly. Then I made a base plate from 18mm multiplex. Added a trigger and my usual lock, used a nail that I can bend into shape.

The lock works like a charm!

I will use two 16mm steel tubes as "barrel" and "rail" parts. The draw is 100% inline with the rails. I plan to make a cocking slide for fast action. This crossbow will be quick.

No changes to the original M16A1.





My YouTube channel: http://www.youtube.com/user/JoergSprave" onclick="window.open(this.href);return false;

My blog: http://www.slingshotchannel.blogspot.de/" onclick="window.open(this.href);return false;

My forum: http://www.theslingshotforum.com" onclick="window.open(this.href);return false;

User avatar
Halfapint
* * * * *
Posts: 4030
Joined: Sat Nov 03, 2012 5:41 pm
Favorite Zombie Movies: all?
Location: Central Cascadia

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by Halfapint » Sat Apr 27, 2013 4:32 pm

Looking great!!! I can't wait to see it shoot!
JeeperCreeper wrote:I like huge dicks, Halfapint, so you are OK in my book.... hahaha
Spazzy wrote:Tell ya what... If Zombies attack and the world ends I'll hook tandem toddlers to a plow if it means I'll be able to eat...

JoergS
* * * * *
Posts: 1460
Joined: Sun Aug 16, 2009 11:15 am

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by JoergS » Wed May 01, 2013 4:04 am

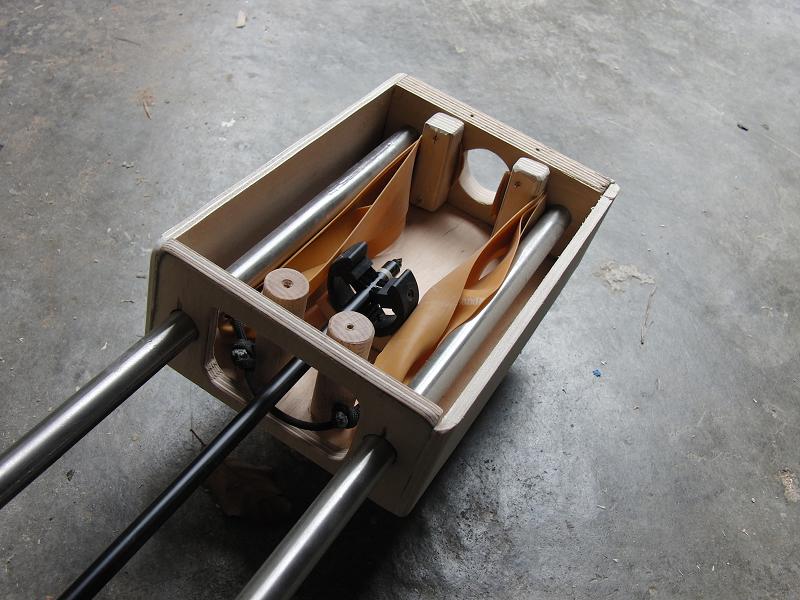

Have been working on it some more. Made an encapsulated front part, for silencing and rubber protection purposes.

I still have to attach brushes to the front and back holes, but it already is very quiet. I also might include a band heating system.

Equipped with 3,1cm x 3,1cm bands (four strips per side), it shoots the 40 gramm aluminum arrow with mighty force. The field tips penetrate about 3cm into massive oak panels. The field tip is pushed down the shaft in the process.

As happy as I am with the functionality, as unhappy am I about the looks. Boxy, clumsy, foolish. Back to the drawing board.



My YouTube channel: http://www.youtube.com/user/JoergSprave" onclick="window.open(this.href);return false;

My blog: http://www.slingshotchannel.blogspot.de/" onclick="window.open(this.href);return false;

My forum: http://www.theslingshotforum.com" onclick="window.open(this.href);return false;

User avatar
Krieger
ZS Member
ZS Member
Posts: 171
Joined: Mon Sep 26, 2011 5:54 am
Location: Norway, Strand

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by Krieger » Wed May 01, 2013 4:45 am

Fun project! Looking forward to see the finished product. :)
Scandinavians unite : http://zombiehunters.org/forum/viewtopi ... 88&start=0" onclick="window.open(this.href);return false;

User avatar
maldon007
* * * * *
Posts: 4097
Joined: Thu Oct 15, 2009 10:49 am
Favorite Zombie Movies: Most of the older stuff, newer stuff just doesnt cut it fsr...
Location: Pickle Bucket Brigade
Contact:

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by maldon007 » Wed May 01, 2013 7:13 am

Awesome so far, I know you will tidy it up nicely, but don't forget a top rail for optics!!



ps: Joerg, if you would, please insert links to your Utube/blog/whatever, in your sig for ease of access! Thanks.

JoergS
* * * * *
Posts: 1460
Joined: Sun Aug 16, 2009 11:15 am

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by JoergS » Wed May 01, 2013 7:50 am

OK! Done.
My YouTube channel: http://www.youtube.com/user/JoergSprave" onclick="window.open(this.href);return false;

My blog: http://www.slingshotchannel.blogspot.de/" onclick="window.open(this.href);return false;

My forum: http://www.theslingshotforum.com" onclick="window.open(this.href);return false;

User avatar
Gingerbread Man
ZS Lifetime Member
ZS Lifetime Member
Posts: 10834
Joined: Mon May 17, 2010 10:05 am

Re: RUB-15 slingshot crossbow for M16/AR-15 lower receiver?

Post by Gingerbread Man » Wed May 01, 2013 8:02 am

Holy crap. off topic but how in the heck do you get a M16 lower in Germany? Those are a massive no go in the US unless it's NFA registered. I don't know the law in Germany at all but that looks like a functioning reciever. Does it have the trigger pack? I don't see the pins that retain them so I'm wondering if you just removed them. What about it makes it a replica?

Whatever you do, for your trip to the US this summer, do not bring that.

OT: Cool project, just wondering about the M16 lower. Possessing one without the proper paperwork here is a serious violation of the law.
Shrapnel wrote "nobody is trying to be a dick and give out warnings for every little thing" :|
https://www.youtube.com/watch?v=DS1icEssOUM

Post Reply

Return to “Other Weapons”
